In oil drilling operations, materials need to face multiple harsh tests such as high temperature and high pressure, corrosive medium erosion, alternating mechanical stress, etc. Each process places extreme demands on the comprehensive performance of the material. The 4130, 4140 and 4340 low-alloy chromium-molybdenum steels, with their high strength, high toughness and excellent corrosion resistance given by their unique alloy ratios, have become the key support for oil drilling giants to build core competitiveness of equipment. How do these steels adapt to the complex needs of drilling scenarios? And what characteristics break through the boundaries of industrial applications? Let us start from the aspects of material performance, cost and environmental adaptability to explore the technical codes that the oil drilling industry has a special liking for them.
What are the Core Performance Requirements of Materials for Oil Drilling?
- High strength and toughness
– Drill pipes and drill bits need to withstand huge torque and impact loads, and steel must have both high strength (such as yield strength ≥ 800MPa) and fatigue resistance to avoid breakage. For example: 4140 chrome-molybdenum steel (strength is significantly improved after quenching and tempering). - Corrosion resistance
– The underground environment contains corrosive media such as H₂S, CO₂, and salt water, and it is necessary to resist sulfide stress corrosion cracking (SSCC) and pitting. - High temperature and high pressure resistance
– The temperature in deep wells can reach more than 200°C, and steel must remain stable at high temperatures. - Wear resistance
– The drill bit and downhole tools rub against the rock violently, and the surface needs to be hardened (such as tungsten carbide coating or AISI 4340).
Why Choose Low Alloy Chromium-Molybdenum Steels?
1. Balance of high strength and toughness
- Synergistic effect of alloy elements: The addition of chromium (Cr) and molybdenum (Mo) significantly improves the hardenability of steel, so that the material can obtain a combination of high strength and good toughness after heat treatment (such as quenching and tempering). For example:
– 4340 steel: Contains high nickel (Ni) and molybdenum, suitable for extremely high stress environments (such as drill pipe joints), with a tensile strength of more than 1000 MPa.
– 4130 steel: Low carbon content (0.30%), better weldability and toughness, suitable for parts that need to be welded (such as drilling platform structural parts). - Impact and fatigue resistance: Drilling equipment often bears dynamic loads (such as vibration and impact), and the high fatigue limit of chromium-molybdenum steel can extend the life of components.
2. Corrosion resistance and high temperature resistance
- Resistance to hydrogen sulfide (H₂S) corrosion: H₂S is often found in drilling environments and can easily cause stress corrosion cracking. Chromium-molybdenum steel can effectively resist sulfide stress corrosion (SSC) by controlling the content of sulfur and phosphorus impurities and performing appropriate heat treatment (such as tempering to below HRC 22).
- High temperature stability: Molybdenum improves the creep resistance of the material at high temperatures (such as the stability of downhole tools in an environment of 150-200°C).
3. Processing and heat treatment adaptability
- Easy processing: Chromium-molybdenum steel can be formed by conventional forging and machining, and is suitable for manufacturing complex components (such as valve bodies and pump shafts).
- Flexibility in heat treatment: Adjust performance through quenching + tempering (quenching and tempering). For example:
– After quenching and tempering, the hardness of 4140 steel can reach HRC 28-32, combining strength and wear resistance, and is suitable for drill collars and tool joints.
– 4340 steel can optimize toughness through secondary tempering and is used for components that bear impact loads.
4. Cost-effectiveness
- Low alloy vs. high alloy: Compared with stainless steel or nickel-based alloys, chromium-molybdenum steel is cheaper, but its performance is sufficient in non-extreme corrosive environments (such as fresh water or low-concentration brine).
- Long life reduces replacement frequency: High strength and fatigue resistance reduce equipment maintenance costs, which is in line with the oil industry’s consideration of life cycle cost (LCC).
5. Industry standards and mature applications
- API standard recognition: For example, API 6A specification recommends 4140 steel for wellhead equipment because it has passed rigorous performance tests (such as hardness and impact energy).
- Historical reliability: Long-term successful application cases in the drilling field (such as BOP valve body and drill pipe) have enhanced the trust of designers.
Typical Application Scenarios of Low Alloy Chromium-molybdenum Steel

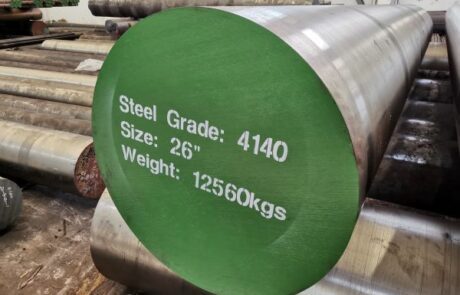

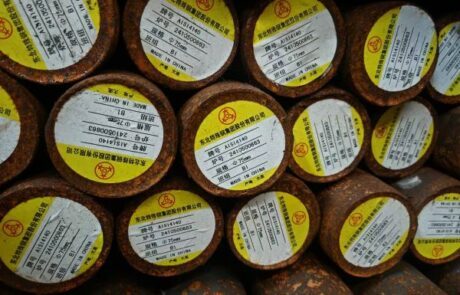

- 4140 steel: drill collars, drill bit bearings, high-pressure valves (high wear resistance and compressive strength are required).

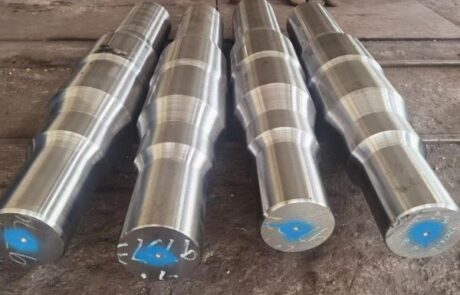

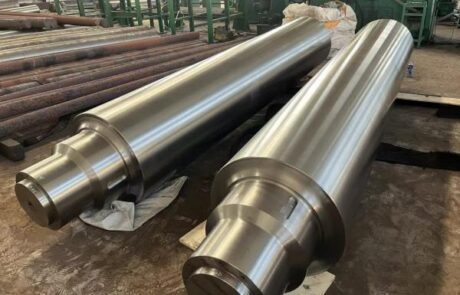

- 4130 steel: drilling platform structural parts, pipelines (high welding requirements).

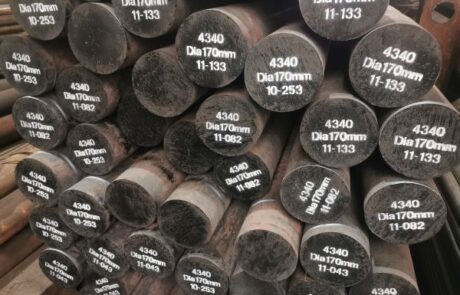

- 4340 steel: heavy drill pipe joints, downhole tools (ultra-high strength and impact resistance are required).
Summary
Chromium-molybdenum low alloy steel has become an ideal choice for oil drilling equipment due to its strength, toughness, corrosion resistance and cost advantages. Different grades (such as 4130, 4140, 4340) accurately match the diverse needs from structural parts to high-pressure core components by adjusting the alloy ratio and heat treatment process, achieving a balance between performance and economy in harsh drilling environments.
Interactive topic: Would you choose low alloy chromium-molybdenum steel for oil drilling? Leave your valuable comments.
