Considering AISI 8620 steel for your project? As a leading Chinese manufacturer, FUHONG specializes in delivering high-quality, innovative AISI 8620 steel solutions. Leveraging advanced technology and a professional team, we offer tailored AISI 8620 products designed to meet your company’s unique requirements. Discover how FUHONG can provide a comprehensive one-stop solution for all your 8620 steel needs—contact us today to learn more.
AISI 8620 Basic Information Introduction
AISI 8620 steel (UNS G86200) is a classic Cr-Ni-Mo series low-carbon alloy case hardening steel under AISI/ASTM standard system.
The core advantages of 8620 steel are that its surface can be carburized and hardened to HRC58-62 while maintaining its core strength and toughness.
As a representative of carburized steel with balanced performance, AISI 8620 steel is widely used in the automotive and machinery manufacturing industries, which is particularly suitable for manufacturing core transmission components that bear loads and impacts.
AISI 8620 STEEL SUPPLY FORM & SIZE & TOLERANCE
AISI 8620 steel Supplier,Stockist and Exporter,supplied with Round,Square,Flat,Block,and Shaft etc.

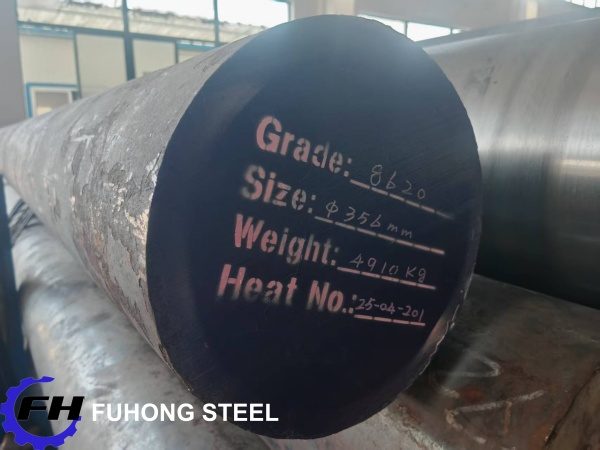

Hot Forged Round bar:Φ80-Φ1000mm
Hot Rolled Round bar:Φ14-Φ290mm
Hot Forged Square bar: Max Thickness:500mm
Flat bar/Blcoks:Thickness :120-800mm ,Width:120-1500mm
| Surface Finish | Black-Forged | Black-Rolled | Rough Turned | Cold Drawn | Peeled | Polished | Grinded |
| Tolerance | 0/+5mm | 0/+1mm | 0/+3mm | Best H11 | Best H9 | Best H9 | Best h8 |
Heat treatment: Normalizing (+N), Annealing (+A)
AISI 8620 STEEL & EQUIVALENT GRADE CHEMICAL COMPOSITION
Grade C Si Mn P S Cr Ni Mo
8620 0.18-0.23 0.15-0.35 0.7-0.9 ≤0.035 ≤0.04 0.4-0.6 0.4-0.7 0.15-0.25
20CrNiMoA 0.17-0.23 0.17-0.37 0.6-0.95 ≤0.035 ≤0.035 0.4-0.7 0.35-0.75 0.2-0.3
20NiCrMo2-2 0.17-0.23 ≤0.4 0.65-0.95 ≤0.025 ≤0.035 0.35-0.70 0.4-0.7 0.15-0.25
SNCM220 0.17-0.23 0.15-0.35 0.6-0.9 ≤0.03 ≤0.03 0.4-0.65 0.4-0.7 0.15-0.3
805M20 0.17-0.23 0.1-0.4 0.6-0.95 ≤0.04 ≤0.05 0.35-0.65 0.35-0.75 0.15-0.25
AISI 8620 STEEL PHYSICAL PROPERTY
- Density: 7.85 g/cm³
- Melting point: approx. 1420-1460°C
- Elastic modulus: 207 GPa
- Thermal conductivity: approx. 46.6 W/(m・K) (room temperature)
AISI 8620 STEEL FORGING
AISI 8620 steel, due to its lower carbon content (0.18-0.23%C), exhibits better forgeability compared to medium and high carbon steels, making it less prone to cracking during forging.
However, to ensure the quality of AISI 8620 steel, strict control of heating rate and forging temperature is still necessary during the forging process.Forging temperature should be carried out between 1150℃-1230℃,forging below 850℃ is strictly prohibited.Slow cooling in a furnace or in sand is required after forging.
AISI 8620 STEEL HEAT TREATMENT
8620 steel Normalizing
Normalizing is used to refine the structure of forgings that might have cooled non-uniformly after forged,and considered as a conditioning treatment before case hardening.Normalizing temperature for AISI 8620 steel should be carried out between 900℃-925℃. hold suitable time for the steel to be thoroughly heated to complete the ferrite to austenite transformation.Cool in still air.This treatment is considered as another method of improving machinability.
8620 steel Annealing
Full annealing is recommended for AISI 8620 before machining, AISI 8620 should be carried our at a nominal temperature of 820℃-850℃,hold suitable time for the steel to be thoroughly heated, then furnace cooling.
8620 steel Quenching
Following core refining, Heat the temperature to 780oC – 820oC, hold suitable time for the steel to be thoroughly heated, and quench in oil.Temper as soon as possible after quenched.
8620 steel Tempering
Tempering is usually carried out to relieve stresses from the hardening process,it will improve the toughness of both case and core, with only a little reduction in core strength and case hardness.Heat the AISI 8620 steel to 150oC – 200oC as required, hold enough time until temperature is uniform throughout the section, soak for 1 – 2 hours per 25 mm of section, and cool in still air.
8620 steel Caburizing
Pack, salt or gas carburize at temperature 900oC – 925oC, holding enough time to obtain the required case depth and carbon content, followed by a suitable hardening and tempering cycle to optimise case and core properties.
AISI 8620 steel Mechanical Property
Typical Mechanical Properties For Core – Carburised and Oil Quenched at 840 °C
| Section Size | 11mm | 30mm | 63mm |
| Tensile Strength Mpa | 980-1270 | 780-1080 | 690-930 |
| Yield Strength Mpa | ≥785 | ≥590 | ≥490 |
| Elongation % | ≥9 | ≥10 | ≥11 |
| Charpy Impact J | ≥41 | ≥41 | ≥41 |
| Hardness HB | 290-375 | 235-320 | 205-275 |
| Hardness HRC | 31-41 | 23-35 | 16-29 |
AISI 8620 STEEL APPLICATIONS
AISI 8620 is suited for applications which require a combination of toughness and wear resistance.It is commonly used in the engineering and automitive industries for toolholders and other such components.
Typical application:Arbors, pinions, bushes, camshafts, kingpins,ratchets, gears, splined shafts etc.
AISI 8620 STEEL BUYING GUIDE
Are you worrying about finding suitable gear materials? Congratulations, you have found the right place.
Here, we will introduce to you AISI 8620, a gear steel with excellent performance, including its basic knowledge, main features, performance and other useful information.
Through this guide, we believe that it can help you solve problems and gain self-confidence.So, what are you waiting for? Let’s start!
WHAT DOES AISI 8620 MEAN?
In the market, we can often see AISI 8620 or SAE8620, in fact, they all refer to 8620 steel,the difference is that one is named by the American Iron and Steel Institute (AISI) and the other is named by the Society of Automotive Engineers (SAE).They jointly developed and shared a set of steel grade numbering system:Unified Numbering System,referred to as UNS.Here,we can find UNS G86200, it is the number for 8620 steel.
For 8620, The first number ‘8’ indicates that the steel is Nickel Chromium Molybdenum Steel,and 86XX means 0.5%Ni,0.5%Cr,0.2%Mo.
The last two numbers ‘20’ indicates the amount of carbon present in the steel. For this grade it has 0.20% carbon same as AISI 1020 steel.
In 86XX series,besides 8620 steel,8622 and 8625 is also commonly used in the industry,we can the difference in composition in the following table
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo |
| 8620 | 0.18-0.23 | 0.15-0.35 | 0.70-0.90 | ≤0.035 | ≤0.04 | 0.4-0.6 | 0.4-0.7 | 0.15-0.25 |
| 8622 | 0.20-0.25 | 0.15-0.35 | 0.70-0.90 | ≤0.035 | ≤0.04 | 0.4-0.6 | 0.4-0.7 | 0.15-0.25 |
| 8625 | 0.23-0.28 | 0.15-0.35 | 0.70-0.90 | ≤0.035 | ≤0.04 | 0.4-0.6 | 0.4-0.7 | 0.15-0.25 |
WHAT IS CASE HARDENING STEEL?
In sliding contact with hard or abrasive materials, the wear of steel materials is inevitable in daily use. How to slow down its wear? After continuous practice, increasing the surface hardness is an effective way to effectively resist surface wear. This is the origin of case hardening steel.
From the EN10084 standard, case hardening steel refers to steels with a relatively low carbon content which are intended for carburising or carbonitriding and subsequent hardening.In the standard, we can clearly see that carbon steel and alloy steel are suitable for case hardening, and the amount of carbon is less than 0.3%.
Types of Case Hardening Methods
- Flame or induction hardening
- Carburizing
- Nitriding
- Carbonitriding
The significant difference between Flame or Induction hardening and the last three methods is that Flame or Induction Hardening does not change the chemical composition of the material, which is just a topical heat treatment process, so it is usually only suitable for high carbon steel having sufficient reaction to quenching.
QUICK FAQS FOR AISI 8620 STEEL
Is AISI 8620 Steel Gear Steel?
Yes,AISI 8620 steel, as a CR-Ni-Mo series case hardening steel, is widely used in carburizing and carbonitriding process,and commonly used in the manufacture of gears in the engines and transmission systems of small and medium-sized cars and tractors.
What is AISI 8620H?
In fact, there is no difference in chemical composition between 8620H and 8620.While add ‘H’, this means that 8620 steel is required to ensure hardenability.
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo |
| 8620 | 0.18-0.23 | 0.15-0.35 | 0.70-0.90 | ≤0.035 | ≤0.04 | 0.4-0.6 | 0.4-0.7 | 0.15-0.25 |
| 8620H | 0.17-0.23 | 0.15-0.35 | 0.60-0.95 | ≤0.035 | ≤0.04 | 0.35-0.65 | 0.35-0.75 | 0.15-0.25 |
Can AISI 8620 Steel be Cold Drawn?
AISI 8620, as a low-carbon low-alloy steel, has higher strength than ordinary low-carbon steel, and good plasticity and toughness.
Yes, it can be cold drawn,and it is better to do cold drawing after annealing.After cold drawing, AISI 8620 steel has a smooth surface and precise dimensions, which is suitable for further processing, such as carburizing.
How Hard is AISI 8620 Steel？
AISI 8620, as a low-carbon alloy steel, under conventional heat treatment, such as annealing and normalizing, the hardness is generally not high, less than 200HBW.
But after carburizing and quenching, it has a very high hardness value, reaching 60HRC, and the core reaches about 35HRC,which is suitable for working under heavy load and impact.
Is AISI 8620 Same as 20NiCrMo2-2?
Although their chemical compositions are very similar, they are equivalent grades. AISI 8620 is the grade of the American standard ASTM A29, while 20NiCrMo2-2, also refers to DIN 1.6523, comes from the EN10084 European standard.
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo |
| 8620 | 0.18-0.23 | 0.15-0.35 | 0.70-0.90 | ≤0.035 | ≤0.04 | 0.4-0.6 | 0.4-0.7 | 0.15-0.25 |
| 20NiCrMo2-2/1.6523 | 0.17-0.23 | ≤0.4 | 0.65-0.95 | ≤0.025 | ≤0.035 | 0.35-0.70 | 0.4-0.7 | 0.15-0.25 |
Other Equivalent Grade
China/GB 3077: 20CrNiMoA
Japan/JIS G4103: SNCM220
UK/BS970:805M20
HEAT TREATMENT FOR AISI 8620 STEEL
AISI 8620 Normalizing & Annealing
- Process comparison
| AISI 8620 Normalizing | AISI 8620 Annealing | |
| Temperature,℃ | 880-920 | 820-850 |
| Cooling | Air Cooling | Furnace Cooling |
| Cooling Speed Rate | Relatively fast | Slow |
| Grain size | Good | Normal |
| Heat Treatment Cycle | Short time | Long time |
| Surface Hardness,HBW | 183-200 | 150-187 |
- Mechanical Properties
| Tensile Strength | Yield Strength | Elongation | Reduction of Area | Impact Charpy-V | Hardness | |
| Normalizing | 1020Mpa | 655Mpa | 17.7% | 47% | 23 | 302HBW |
| Annealing | 655Mpa | 415Mpa | 25.7% | 57% | 55 | 197HBW |
How to Carburize AISI 8620 Steel？
- AISI 8620 Isothermal Normalizing
Before carburizing AISI 8620 steel, it is first subjected to isothermal normalizing as a preliminary heat treatment.The purpose is to
eliminate or improve various structural defects caused by hot working, obtain easy-to-cut microstructure and hardness, improve microstructure and distribution, refine grains, and prepare microstructure for the carburizing and quenching process.
AISI 8620 steel requires a hardness of HB156-207 after isothermal normalizing, and the structure is uniform pearlite plus ferrite. Generally, normalizing tends to appear bainite structure, which leads to material brittleness and higher hardness, which is not conducive to cutting. Therefore, the isothermal normalizing process should suppress the appearance of bainite structure.
The previous steps of AISI 8620 steel isothermal normalizing, such as heating temperature and holding time are the same as ordinary normalizing.After the heat preservation is completed, cool to an isothermal temperature of about 700℃, so that the supercooled austenite is transformed in this temperature range, and a finer (relative to isothermal annealing) pearlite structure is obtained, finally air-cooled.
- AISI 8620 Carburizing
The carburizing and quenching process of AISI 8620 steel can be carburized with slowly cooling, followed by secondary heating and quenching & tempering. This method can refine the grains, reduce the amount of retained austenite after quenching, increase the quenching hardness, increase the strength of the carburized layer, and reduce deformation.
Carburizing Temperature:900-920℃
Quenching Temperature:780-820℃
Quenching Meduim:Oil
Tempering Temperature:150-200℃
Surface Hardness: above 58HRC
Core Hardness:35-47HRC
Effective Case Hardened Layer Depth: 1.7-2.1mm
AISI 8620 VS 17CRNIMO6
First of all, they are all case hardening steel. The difference is that AISI 8620 comes from the American standard, and 17CrNiMo6,also refers to 18CrNiMo7-6(EN10084 Standard), belongs to the grade in the German DIN17210 standard.Next, let’s briefly discuss the difference between these two steel grades.
- Chemical Composition
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo |
| 8620 | 0.18-0.23 | 0.15-0.35 | 0.70-0.90 | ≤0.035 | ≤0.04 | 0.4-0.6 | 0.4-0.7 | 0.15-0.25 |
| 17CrNiMo6/1.6587 | 0.15-0.20 | ≤0.4 | 0.4-0.6 | ≤0.035 | ≤0.035 | 1.5-1.8 | 1.4-1.7 | 0.25-0.35 |
From the above table,we can see that although they are both low-carbon alloy steels, the difference in the elemental composition of Cr Ni Mo is still very obvious.Due to these differences, the manufacturing cost is obviously higher than 8620 steel.
- Hardenability Limits
| Distance from quenched end mm | 1.5 | 3 | 5 | 7 | 9 | 11 | 13 | 15 | 20 | 25 | 30 | 35 | 40 | |
8620 | HRC Min | 41 | 37 | 31 | 25 | 21 | – | – | – | – | – | – | – | – |
| HRC Max | 48 | 47 | 43 | 39 | 35 | 32 | 30 | 29 | 26 | 24 | 23 | 23 | 23 | |
17CrNiMo6 | HRC Min | 40 | 40 | 39 | 38 | 37 | 36 | 35 | 34 | 32 | 31 | 30 | 29 | 29 |
| HRC Max | 48 | 48 | 48 | 48 | 47 | 47 | 46 | 46 | 44 | 43 | 42 | 41 | 41 | |
From the above table of end quenching test,We can clearly see the difference in data between AISI8620 and 17CrNiMo6. It can be said that the hardenability of 17CrNiMo6 is significantly better than AISI 8620 steel.Therefore, when we choose an application, we should fully consider the properties of the material to make the best use of it.
- Industrial Application
As a representative of the Cr-Ni-Mo series, in the automotive field, the American standard AISI 8620 steel is usually used in light and medium-sized vehicles to meet the requirements of the use of small and medium-sized modular gear steels, while the German standard 17CrNiMo6 steel is used in heavy vehicles. It is suitable for manufacturing large-modulus and heavy-duty automobile gears.
17CrNiMo6 Gears For Further Processing
WHERE CAN YOU BUY HIGH-QUALITY AISI 8620 STEEL?
With rich manufacturing experience for more than 15 years in the field of special steel manufacturing,we can not only manufacture high-quality AISI 8620 steel, but also provide one stop service solution,including heat treatment,machining and cutting.When you are looking for AISI 8620 steel, we will always be your best choice.
What We Supply For AISI 8620 Steel
| Supply Form | Size(mm) | Process | Tolerance | |
Round | Φ6-Φ100 | Cold Drawn | Bright/Black | Best H11 |
Φ16-Φ350 | Hot Rolled | Black | -0/+1mm | |
| Peeled/ground | Best H11 | |||
Φ90-Φ1000 | Hot Forged | Black | -0/+5mm | |
| Rough Turned | -0/+3mm | |||
Flat/Square/Block | Thickness :120-800 | Hot Forged | Black | -0/+8mm |
| Width:120-1500 | Rough Machined | -0/+3mm | ||
Heat Treatment:Normalized(+N),Annealed(+A)
What Size We stock For AISI 8620 Steel
- Hot Rolled Round Bar:Φ16-Φ300mm,7 Days Delivery
- Hot Forged Round Bar:Φ140-Φ250mm,15 days Delivery
- Customized service：Special Size & Length,30 days Delivery
- Free Sample of AISI 8620 Steel
